Why Differential Equations?

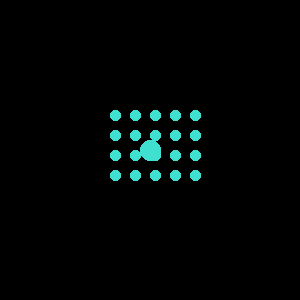

Radioactive decay

The decay rate is proportional to the amount present:

\( N' = -\lambda N. \)
Radioactive decay
Exponential decay of \( N(t) \)

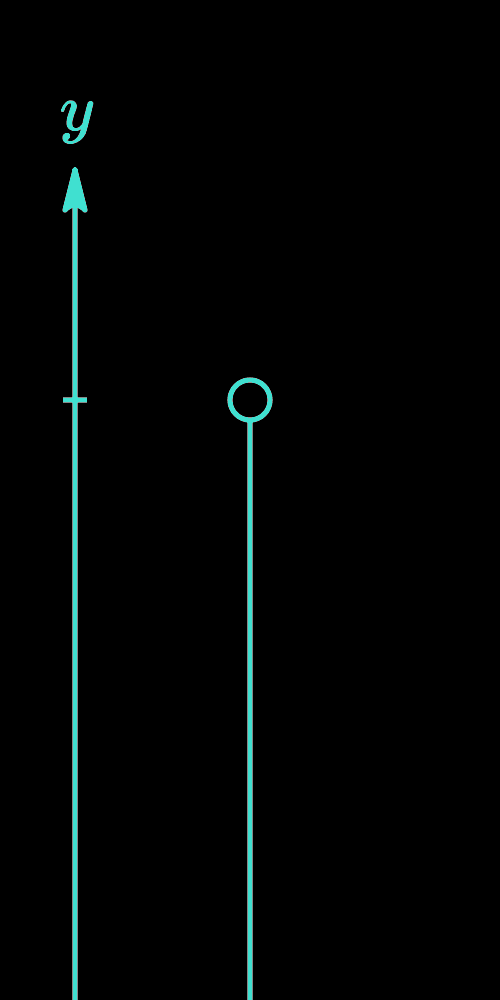

Free fall with drag

Free fall with drag
A falling body approaching terminal velocity

Gravity accelerates, air resistance brakes:

\( v' = g - kv. \)

Velocity approaches a terminal value.

Spring oscillation

The restoring force is proportional to displacement:

\( x'' = -\omega^{2} x. \)
Spring oscillation
Harmonic motion of a mass on a spring

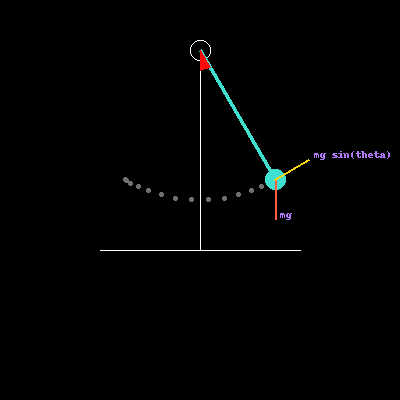

Pendulum

Pendulum
Pendulum motion

A swinging pendulum obeys

\( \theta'' + \tfrac{g}{L}\sin\theta = 0. \)

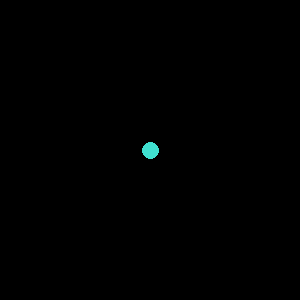

Epidemic spread

Growth slows as the susceptible pool empties:

\( I' = rI\left(1 - \tfrac{I}{K}\right). \)
Epidemic spread
Logistic spread of an infection
